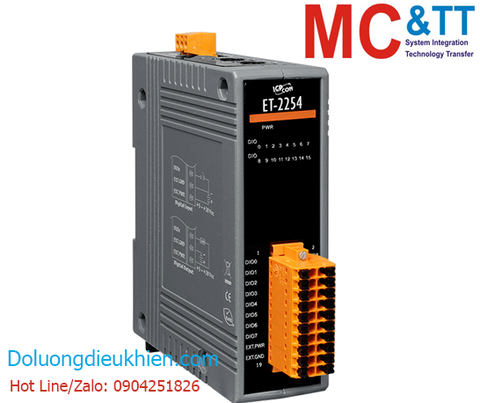

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 2 cổng Ethernet Modbus TCP & MQTT 16 kênh DI/DO ICP DAS ET-2254 CR
Features
Introduction
Providing a variety of digital I/O functions, the ET-2254(P) module is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industrial applications, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2254(P) module being perfectly integrated with the HMI, SCADA, PLC or other software systems.
The ET-2254(P) provides 16-channel Universal DIO. Each I/O port can be configured as DI or DO port. The ET-2254 provides Digital Output channel can drive 100 mA load, while the ET-2254P provides Digital Output channel can drive 400 mA load. There are configurable power-on and safe values for Digital Output. With 2 Ethernet ports, the ET-2254(P) allows daisy chain connection which enables flexibility in locating devices; easy installation and lower infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3750 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2254(P) module can continuously poll the status of the local DI channels and then write to the remote DO devices via the Modbus/TCP protocol.
It is equipped with removable terminal block connector for easy and robust wiring in industrial applications, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
Specification
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Watchdog Timer | Yes, Module, Communication (Programmable) |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±8 kV Contact for Each Terminal and ±16 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 1 x Ethernet 16 x I/O |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| Input Impedance | 3 kΩ, 0.5 W |
| Digital Output | |
|---|---|
| Type | Open-collector (Sink) |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 VDC to +30 VDC |
| Max. Load Current | 100 mA/channel |
| Power on Value | Yes, Configurable |
| Safe Value | Yes, Configurable |
| COM Ports | |
|---|---|
| Protocol | Modbus TCP, Modbus UDP |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| Security | Password and IP Filter |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 3.3 W Max. |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 mm x 127 mm x 99 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| ET-2254 CR | Ethernet I/O Module with 2-port Ethernet Switch and 16-ch Universal DIO (DO Max. Load Current: 100 mA) (RoHS) |
