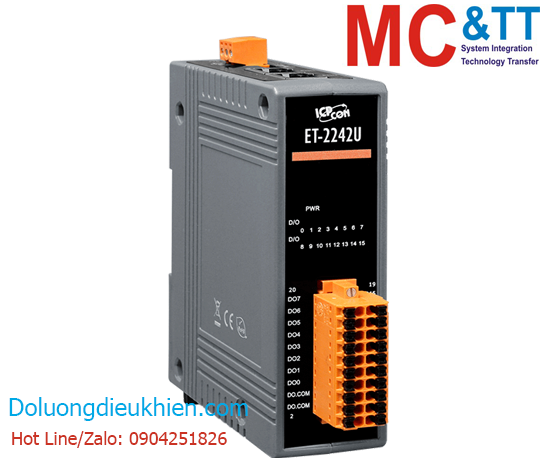

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 2 cổng Ethernet Modbus TCP & MQTT 16 kênh DO ICP DAS ET-2242U CR
Features
Introduction
Providing various digital I/O functions, the ET-2242/2242U module is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2242/2242U module perfect integration with the HMI, SCADA, PLC and other software systems.
The ET-2242 provides 16 Sink-type Digital Output channels and each channel can drive 650 mA load, while ET-2242U provides 16 sink- or source-type Digital Output channels by wire connection and each channel can drive 500 mA load. There are configurable power-on and safe values for Digital Output. With 2 Ethernet ports, the ET-2242/2242U allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3000 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments.
The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2242/2242U module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices.
It is equipped with removable terminal block connector for easy and robust wiring in industrial situations, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
Specification
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Watchdog Timer | Yes, Module, Communication (Programmable) |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±8 kV Contact for Each Terminal and ±15 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 1 x Ethernet 16 x I/O |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Push-Pull |
| Sink/Source (NPN/PNP) | Sink/Source |
| Load Voltage | +3.5 V ~ +80 V |
| Max. Load Current | 500 mA/Channel |
| COM Ports | |
|---|---|
| Protocol | Modbus TCP, Modbus UDP |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| Security | Password and IP Filter |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 24 VDC: 2.3 W Max. 48 VDC: 2.6 W Max. |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 mm x 127 mm x 99 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| ET-2242U CR | Ethernet I/O Module with 2-port Ethernet Switch and 16-ch Sink/Source-type DO (RoHS) |
