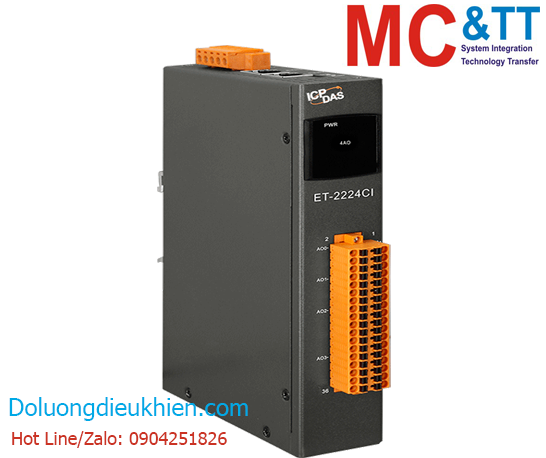

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 2 cổng Ethernet Modbus TCP & MQTT 4 kênh AO ICP DAS ET-2224CI CR
Features
Introduction
The ET-2224CI is Channel to Channel Isolation analog output module that includes 4 differential analog output channels, and allows a programmable output range on all analog outputs channels (0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20 mA or 0 ~ +20 mA). Each analog output channel can be configured for an individual range and provides an RF immunity level matching that defined by the IEC 61000-4-3 standard. Voltage and current outputs are programmable selectable, and the module also features per-channel open wire detection for +4 ~ +20 mA outputs, together with 4 kV ESD protection as well as 3750 VDC intra-module isolation. Options for configuring power-on and safe values are also included.
Specification
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Watchdog Timer | Yes, Module, Communication (Programmable) |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 2 x Ethernet |
| Analog Output | |
|---|---|
| Channels | 4 Differential |
| Type | Voltage: 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC Current: 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Short Circuit Protection | Yes |
| DA Output Response Time | 10 ms per channel |
| Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
| Open Wire Detection | Yes, +4 ~ +20 mA |
| Current Output Capacity | 500 Ω |
| Voltage Output Capability | 10 V @ 10 mA |
| Channel-to-Channel Isolation | Yes, 3000 VDC |
| Power on Value | Yes |
| Safe Value | Yes |
| COM Ports | |
|---|---|
| Protocol | Modbus TCP, Modbus UDP |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| Security | Password and IP Filter |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 6 W (Max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 176 mm x 33 mm x 130 mm (L x W x H) |
| Installation | DIN-Rail Mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| ET-2224CI CR | Ethernet I/O Module with 2-port Ethernet Switch, 4-channel differential analog outputs (RoHS) |
