Miễn phí vận chuyển với đơn hàng từ 10.000.000đBo mạch kết nối 8 kênh bộ đếm Counter + 8 kênh đầu ra DO ICP DAS DN-8P8C-CA CR
Features
Introduction

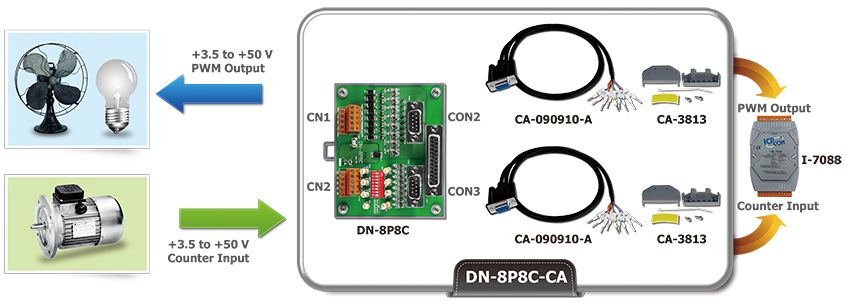

The DN-8P8C External Board can be used to develop powerful and cost-effective analog control systems, and provides 8 Digital Output channels and 8 Counter Input channels for I-8088W, I-87088W, CAN-2088, or I-7088 Modules, allowing the load voltage to be increased from +3.5 to +50 V for the 8-channels PWM (Pulse Width Modulation) output and the 8-channels high-speed counter.
Specification
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal |
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Wet |
| Wet Contact, ON Voltage Level | SW1 OFF : +12 to +50 VDC SW1 ON : +3.5 to +5 VDC |
| Wet Contact, OFF Voltage Level | SW1 OFF : +4 VDC Max. SW1 ON : +1 VDC Max. |
| Input Impedance | SW1 OFF : 3 KΩ, 1 W SW1 ON : - |
| Overvoltage Protection | SW1 OFF : 54 VDC SW1 ON : 5 VDC |
| Digital Output | |
|---|---|
| Channels | 8 |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 VDC ~ +50 VDC |
| Max. Load Current | 200 mA/Channel |
| Counter/Frequency/Encoder Input | |
|---|---|
| Max. Speed | 500 kHz |
| Mechanical | |
|---|---|
| Dimensions (mm) | 103 mm x 96 mm x 30 mm (L x W x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 to +75°C |
| Humidity | 10 ~ 95% RH, Non-condens |
Download
Ordering information

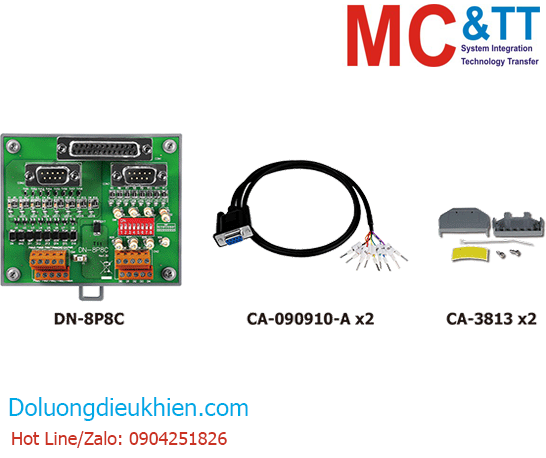

| DN-8P8C-CA CR | 8-channel Digital Output and 8-channel Counter Input Board, including two CA-090910-A Cable and two CA-3813 Connector Casing (RoHS) |
