Miễn phí vận chuyển với đơn hàng từ 10.000.000đBo mạch kết nối 32 kênh đầu ra Relay ICP DAS DN-8K32R CR
Feature
Introduction

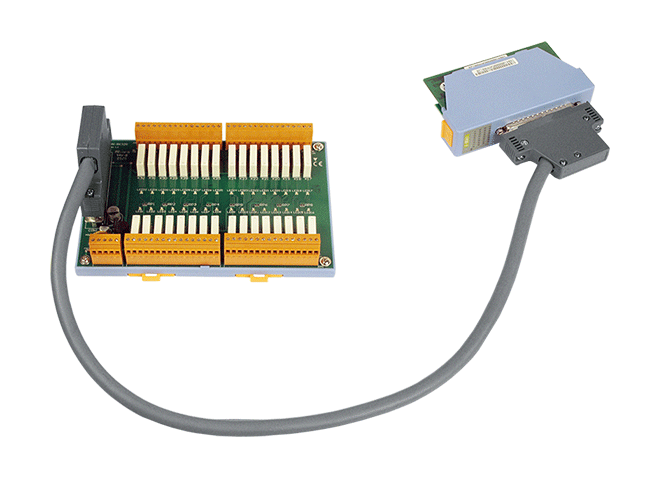

The DN-8K32R is a 32-channel of Signal Relay Output Board, consisting of 32 form A relays for efficient programmable load switching. All connectors and functionalities are compatible with the I-8041 and I-87041 Open-collector output board.
The DN-8K32R has 33 of LED indicator functions; containing 32 LED's for Relay indication status and one to display power status. To avoid overload from your PC's power supply, the boards allows a power input range from +12 ~ 30 VDC.
Application
Specifications
| Relay Output | |
|---|---|
| Channels | 32 |
| Contact Rating | Form A: 3 A @ 250 VAC |
| Operate Time | Form A: 10 ms |
| Release Time | Form A: 5 ms |
| Mechanical Endurance | SPST:10,000,000 ops. |
| Power | |
|---|---|
| Input Range | +12 ~ 30 VDC |
| Consumption | 6 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 118 x 174 (W x L) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ 75°C |
| Storage Temperature | -30 ~ +85℃ |
| Humidity | 10% ~ 90% RH, Non-condensing |
Download
Datasheet
Ordering Information

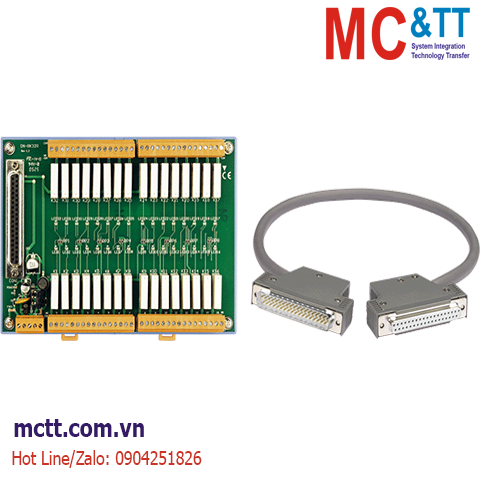

| DN-8K32R CR | 32-channel Relay (Form A, 3A) Output Board (Pitch= 3.81 mm) with DIN-rail Mounting (RoHS) Include : CA-3705A (DB37 Male to Female, 0.5M) |
