Miễn phí vận chuyển với đơn hàng từ 10.000.000đ4-axis Stepper/Servo Motion Control Terminal Borad ICP DAS DN-84100U CR
Features
• Support Pulse Command Type Step Motors or Servo Motors
• Include a Power LED and other status LEDs (Home, Limit Switches, etc.)
• Include an FRnet Terminal for High-speed serial I/O expansion when the controller supports Frnet
Introduction

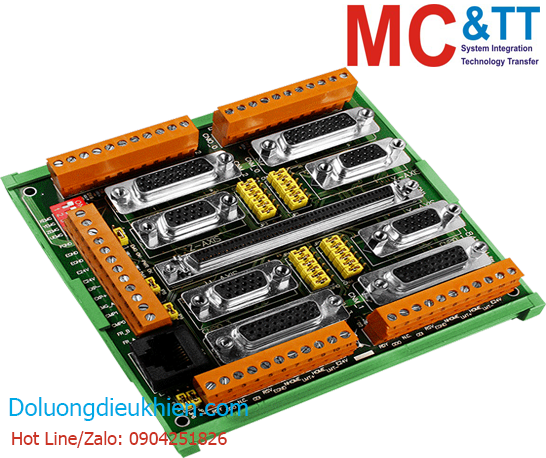

The DN-84100U is a universal snap-on wiring terminal board designed to connect between PISO-PS410 or PISO-PS810 series motion controllers and various type of servo driver. Moreover, it also includes 4-axis I/O signals. Different servo drivers and stepper drivers can be easily connected with the motion controller which help to improve the competitiveness of our customer.
Specification
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 118 mm X 121 mm |
| Environmental | |
|---|---|
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| DN-84100U CR | Universal Snap-on Wiring Terminal Board for PISO-PS410 and PISO-PS810 |
