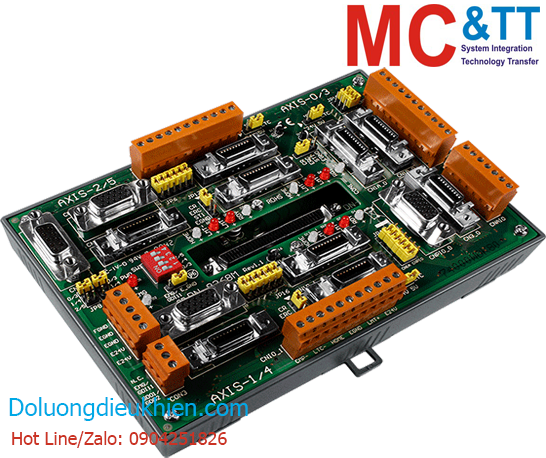

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ3-axis Stepper/Servo Motion Control Terminal Borad ICP DAS DN-8368MB CR
Features
• High Speed Photo-coupling Isolated.
• Supporting Pulse Command Type Step Motors or Servo Motors.
• Providing Power LED and Other Status LEDs (Home, Limit Switches, …)
Introduction
The DN-8368 series is a daughter-board that is designed for ICP DAS’s 6-axis motion controllers, such as PISO-PS600, PISO-VS600 and PMDK. Each DN-8368xB supports 3-axis and two DN-8368xB are required to support 6-axis. The DN-8368GB is designed for general purpose usage while the DN-8368MB is designed to be easily connected with Mitsubishi MINAS-J2S series servo amplifier. It is not only a screw terminal board for easy connection of signals; it also provides on-board isolating circuitry to protect the controllers. Interface signals are divided into three groups. Each group corresponds to a single axis and contains the necessary pulse output command lines, encoder feedback lines, mechanical switch inputs (Home, near home, limit -switches) and some servo input/output interfaces (Srv_On, ERC, ALM_RST, RDY, Alarm, INP). Terminal connectors are used for easy wiring purpose. Users can interchange connectors to interchange each axial definition without laborious rewiring. This board also contains on-board power module which provides different voltages for other on-board circuitry.
Specification
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 162 mm X 107 mm |
| Environmental | |
|---|---|
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| DN-8368MB CR | Snap-on Wiring Terminal Board for Mitsubishi MELSERVO-J2 Servo Amplifier |
