Miễn phí vận chuyển với đơn hàng từ 10.000.000đBo mạch kết nối 24 kênh đầu ra Relay SSD DC ICP DAS DB-24SSRDC/D
Features
Introduction

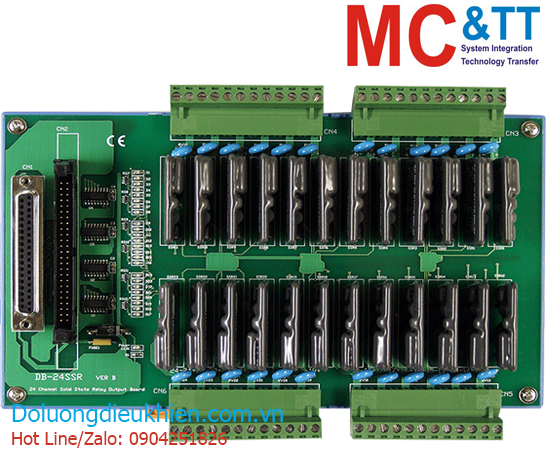

The DB-24SSR/DB-24SSRDC includes 24 normally open, or form A, solid-state relays The board interface to filed logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The user can use the DB-24SSR/DB-24SSRDC to switch high voltage load, up to 240 VAC/50 VDC and up to 4 A. The relay is energized by applying a 5-voltage signal to the appropriate relay channel on the 50-pin header or 37-pin D-sub connector. Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated. Because there is a D-sub 37-pin connector on the board, the user may use it to interface to any TTL output board. In other words, the user may use it as a general purpose solid state relay output board.
Specification
| Relay Output | |
|---|---|
| Channels | 24 X FORM A |
| Type | SSR |
| Contact Rating | 4 A @ 3~50VDC |
| Operate Time | 1/2 cycle of voltage sina wave 1ms (max) |
| Electrical Endurance | Long Life, No Arcing, No Bounce, No Switching Noise |
| Power | |
|---|---|
| Consumption | 0.4 A @ +5 V (max.) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 130 mm x 220 mm x 32 mm (W x L x H) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% ~ 90% RH, non-condensing |
Download
Ordering information
| DB-24SSRDC/D | 24-ch DC-Type Solid-State Relay Board Include: CA-3710 (DB37 Male to Male, 45º, 1M) |
