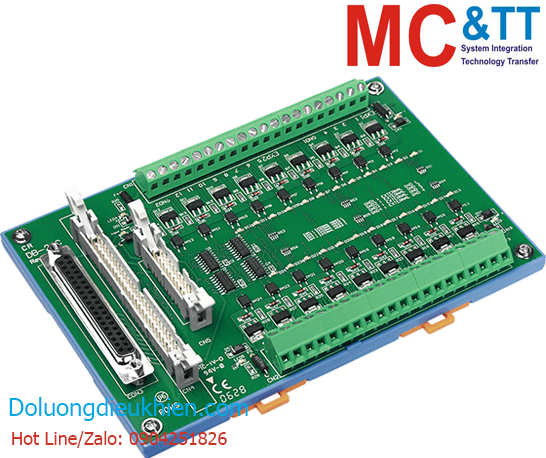

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBo mạch kết nối 24 cổng đầu ra số DO ICP DAS DB-24C/DIN CR
Features
•24 open-collector output (NPN)
•One OPTO-22 Compatible Connector and one 37 pin D-sub connector and one 20-pin connector
•Connects directly to OPTO-22 compatible board
•24 channel max. load 600mA (per channel)
•Max. laod voltage : 30 VDC
•LED’s indicated output status
•Screw terminals for easy field wiring
Introduction
The DB-24C has 24 channels of optically isolated digital outputs, arranged into four isolated banks.
Specification
| Digital Output | |
|---|---|
| Channels | 24 |
| Type | Open Collector |
| Max. Load Current | (100mA/30Vdc)x16; (600mA/30Vdc)x8 |
| Response Speed | 1 kHz (Typical) |
| Isolation | 3750 Vrms |
| Power | |
|---|---|
| Consumption | 400 mA @ 5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 170 mm x 114 mm |
| Installation | DIN-rail mounting |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
Download
Ordering information
| DB-24C/DIN CR | 24-ch Open Collector Output Board with DIN-rail Mounting (RoHS) Include: CA-5015 (Flat Cable, 50-pin, 1.5 M) |
