Miễn phí vận chuyển với đơn hàng từ 10.000.000đBo mạch kết nối 16 kênh đầu ra Relay ICP DAS DB-16R CR
Features
•Form C relays
•Accept 20-pin connector to control 16 form c relays for use with A-82X , DIO-64 digital output port or any compatible digital output port
•Each LED light when corresponding relay is activated
•Screw terminals for field wiring
Introduction

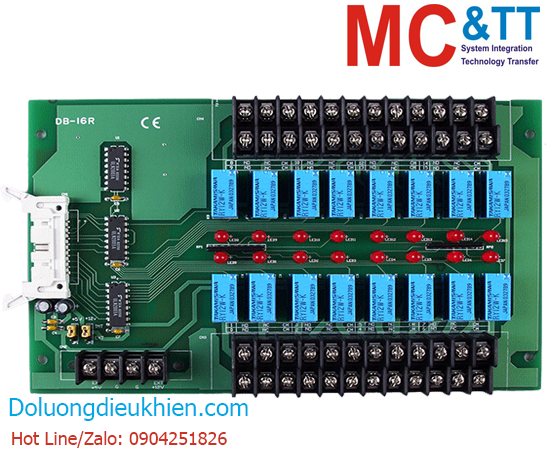

The DB-16R 16 channel Relay Output Board consists of 16 form c relays for efficient switch of load by programmed control. It is connector and functionally compatible with 785 series board but with industrial type terminal block. The DB-16R can be used by A-82x board or any other compatible board The relay are energized by apply 5 volt signal to the appropriate relay channel on the 20-pin flat cable connector . Sixteen enunciator LEDs ,one for each relay , light when their associated relay is activated . To avoid overloading your PC’s power supply ,this board provides a screw terminal for power supply.
Specification
| Relay Output | |
|---|---|
| Channels | 16 x FORM C |
| Type | Signal Relay |
| Contact Rating | 0.5A/120VAC ,1A/24VDC |
| Operate Time | 6ms |
| Release Time | 3ms |
| Electrical Endurance | 2 x 10^5 |
| Mechanical Endurance | 2 x 10^7 |
| Power | |
|---|---|
| Input Range | 12 VDC |
| Consumption | +12 V @528 mA max. +5 V @150 mA max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 205 mm x 114 mm |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
Download
Ordering information
| DB-16R CR | 16-ch Relay Board (RoHS) Include : CA-2010 (Flat Cable, 20-pin, 1 M) |
