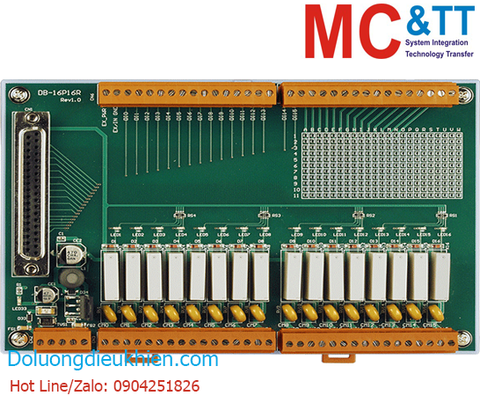

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBo mạch kết nối 16 kênh đầu vào số + 16 kênh đầu ra Relay ICP DAS DB-16P16R CR
Features
•The DB-16P16R accepts 37-pin connectors to control 16 form A relays and 16-channle input terminal for use with PISO-P32C32 and ISO-P32C32
•Each LED is displayed when the corresponding relay is activated Screw terminals for field wiring
Introduction
The DB-16P16R is a 16 channel isolated digital input & 8 channel relay output daughter board for DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U & PIO-D48U OPTO-22 Compatible digital I/O board
Specification
| Digital Input | |
|---|---|
| Channels | 16 |
| TTL Input, OFF Voltage Level | Pin-to-pin terminals |
| Relay Output | |
|---|---|
| Channels | 16 x FORM A |
| Type | Signal Relay |
| Contact Rating | 250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute) 250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute) |
| Operate Time | 10 ms (typical) |
| Release Time | 10 ms (typical) |
| Electrical Endurance | 250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute), 250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute) |
| Mechanical Endurance | 20,000,000 ops. At no load. (300 ops./minute) |
| Power | |
|---|---|
| Input Range | +12 ~ 30 VDC |
| Consumption | 0.20 A @ +24 V Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 118 mm x 174 mm |
| Installation | DIN-rail mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
Download
Ordering information
| DB-16P16R CR | 16-ch Input Terminal and 16-ch Relay Board (RoHS) Include: CA-3710D (DB37 Male to Male, 180º, 1M) |
