Trang chủ » Tất cả sản phẩm » Máy tính công nghiệp màn hình cảm ứng 19 inch Cimon CM-NT19-A

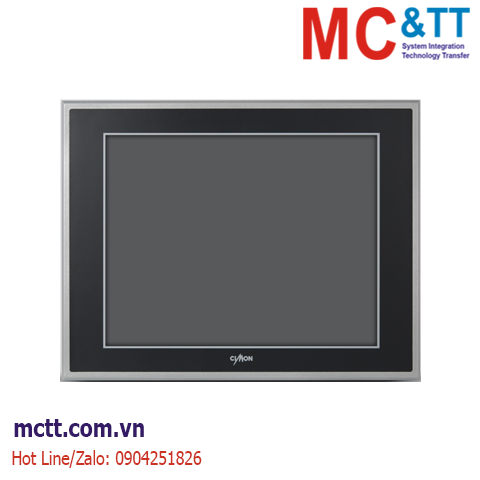

Máy tính công nghiệp màn hình cảm ứng 19 inch Cimon CM-NT19-A

Lượt xem: 1711

CM-NT19-A: Intel E3845, 19″ (1280×1024) TFT, 120GB SSD, 4GB RAM, OS included, CM01-FULL/DS included

Chia sẻ:

Máy tính công nghiệp màn hình cảm ứng 19 inch Cimon CM-NT19-A

General specification

Item Specification
Rated voltage DC24V or AC100-240V
Ambient temperature 0℃~ 50℃
Storage temperature -20℃~ 60℃
Ambient humidity 10%RH~85%RH (below 29℃, No dew condensation)
Storage humidity 10%RH~85%RH (below 39℃, No dew condensation)
Environment condition 800hPa~1114hPa (2000m or less)
Dust ≤ 0.1mg/m3 (non-conductive)
Pollution degree ≤ Pollution degree 2t
Operating ambience Free from corrosive gas and excessive dust
Vibration resistance SSD storage type 9.8m/S2, 10Hz~75Hz in X,Y,Z (80min)
Noise resistance Impulse, EFT/Burst, Surge, ±2kV, 1uS
Static discharge resistance Contact Discharge 4kV (IEC61000-4-2 LEVEL 3)
Air Discharge 8kV (IEC61000-4-2)
CM-NT Series H/W
CM-NT19-A
CPU Intel Baytrail-l Embedded Processor E3845 Quad Core 1.91GHz (FANLESS)
MEMORY DDR3L SDRAM 4GB (Max. 8GB)
GRAPHIC Integrated Intel HD Graphic
DISPLAY 19″ TFT LCD
RESOLUTION SXGA (1280X1024)
LCD BRIGHTNESS 250cd/m2
Backlight Unit LED
TOUCH Analog Resistive
STORAGE SSD 120 GByte
EX. STORAGE SATA X 1
SERIAL (COM1, COM2, COM3) RS-232C
SERIAL (COM4) RS-422 / 485
ETHERNET Gigabit Ethernet / 2 Port
USB Front : USB 2.0 / 2 Port
Rear : USB 2.0 / 4 Port
AUDIO Line-out / 1 Port , MIC-in / 1 Port
EX. VIDEO VGA / HDMI
OS (Selectable) Windows Embedded 8.1 Industry Pro / Windows Embedded Standard 7P / Windows 7 Professional (DSP)
UTILITY PROGRAM EWF(UWF : WIN8.1) / Winclon (Recovery System)
POWER CONSUMPTION 25W
POWER INPUT AC100~240V, 50/60Hz, 1.6A

CM-NT19-A

Intel E3845, 19″ (1280×1024) TFT, 120GB SSD, 4GB RAM, OS included, CM01-FULL/DS included
