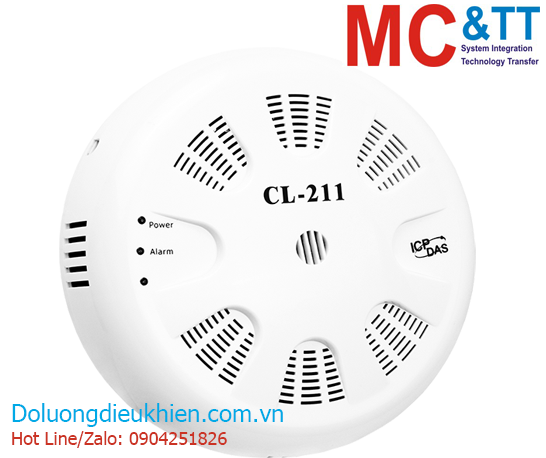

Miễn phí vận chuyển với đơn hàng từ 10.000.000đCL-211 CR: Cảm biến đo độ bụi PM2.5+ CO + nhiệt độ + Độ ẩm RS-485 Modbus
Features
Introduction
The CL-200 series of Data Logger devices can be used to record PM2.5, CO, CO2, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300 Utility from anywhere and at any time using the free Windows software.Support is provided for popular industrial protocols such as DCON and Modbus RTU. The DL-300 Data Logger can be connected via widely used RS-485 communication interfaces, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.
Specifications
| Temperature Measurement | |
|---|---|
| Range | -10 ~ +50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.6°C |
| Humidity Measurement | |
|---|---|
| Accuracy | ±5% RH, Non-condensing |
| Range | 0 ~ 100% RH, Non-condensing |
| Resolution | 0.1% RH, Non-condensing |
| Dew Point | |
|---|---|
| Range | Calculated using temperature and relative humidity |
| Resolution | 0.1°C |
| CO Measurement | |
|---|---|
| Range | 0 to 1000 ppm (Electrochemical) |
| Resolution | 1 ppm |
| Accuracy | ±5% of measured value |
| Response Time | 30 seconds |
| Warm-up Time | 5 minutes |
| PM2.5 Measurement | |
|---|---|
| Range | 0 ~ 400 μg/m3 |
| Resolution | 1μg/m3 |
| Response Time | <= 1 min. |
| System | |
|---|---|
| Alarm | PM2.5/CO/CO2/RH/Temperature |
| Real Time Clock | Yes |
| Data Logger | Yes, up to 450,000 records |
| Relay Output | |
|---|---|
| Channels | 1 x Form A, SPST 30 VDC @ 16 A or 250 VAC @ 16 A |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Protocol | DCON and Modbus/RTU (RS-485) |
| Power | |
|---|---|
| Consumption | 1.0 W (Max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | Ø 150 x 53 (Ø x H) |
| Installation | Ceiling Mounting/Wall Mounting |
| Ingress Protection Rating | IP20 |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering infromation
| CL-211 CR | PM2.5/CO/Temperature/Humidity/Dew Point Data Logger Module (RS-485) (RoHS) |
