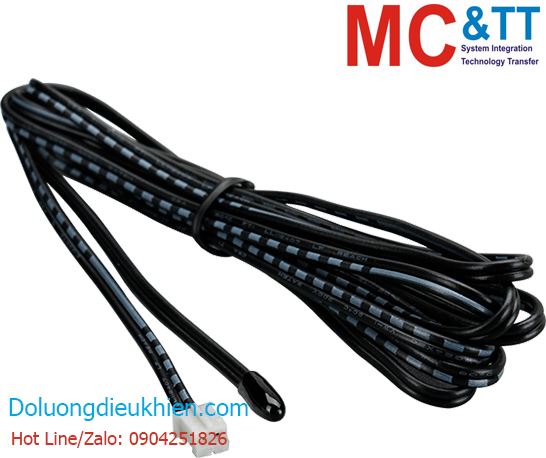

NTC Thermistor, Epoxy Resin to Connector Cable (-40°C~+80°C) ICP DAS CA-TM-P100-L050P CR

NTC Thermistor, Epoxy Resin to Connector Cable (-40°C~+80°C) ICP DAS CA-TM-P100-L050P CR

Features

• Material of Coating : Epoxy Resin (Color: Black)
• Wire : 4.98m, UL2468 #24AWG*2C (TS)
• Connector : JST PHR-2 or CS JS-1124-2 or WST P2-I20001 or JMT JP24181-2(Color: White)
• Resistance : R₂₅=10K(Ω)±1%
• B Constant : R_25/85=3435(K)±1%
• Dissipation Factor : ≧3(mW/°C)
• Thermal Time Constant : ≦ 10 (sec)
• Measuring Temperature Range : -40°C ~ +80°C
