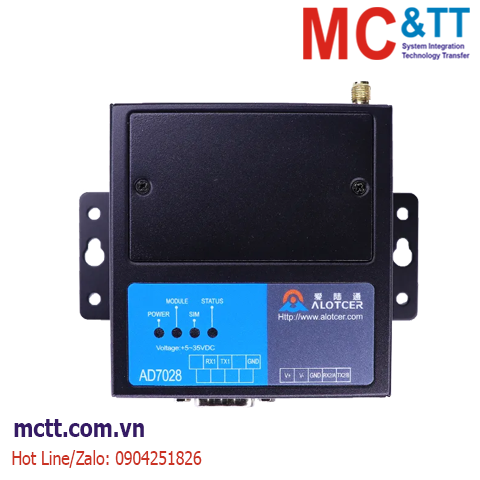

Modem IP 3G/4G 1 cổng RS232 + 1 cổng RS232/485 Alotcer AD7028K

Modem IP 3G/4G 1 cổng RS232  + 1 cổng RS232/485 Alotcer AD7028K

Support seven network systems such as TD-LTE, FDD-LTE, TD-SCDMA, WCDMA, CDMA1X, GSM/GPRS/EDGE.

Multi-interface, flexible access

Support for transparent TCP/UDP/modbus/MQTT/Ntrip, etc., supporting 5-way data centers. SMS channel backup, multi-channel multi-protocol simultaneous connection communication

Support Ali Cloud/Huawei Cloud/Microsoft Cloud/Amazon Cloud and other mainstream IOT platforms

Rich options, support GPS positioning, Beidou positioning and communication, Lora and other multi-occasion applications

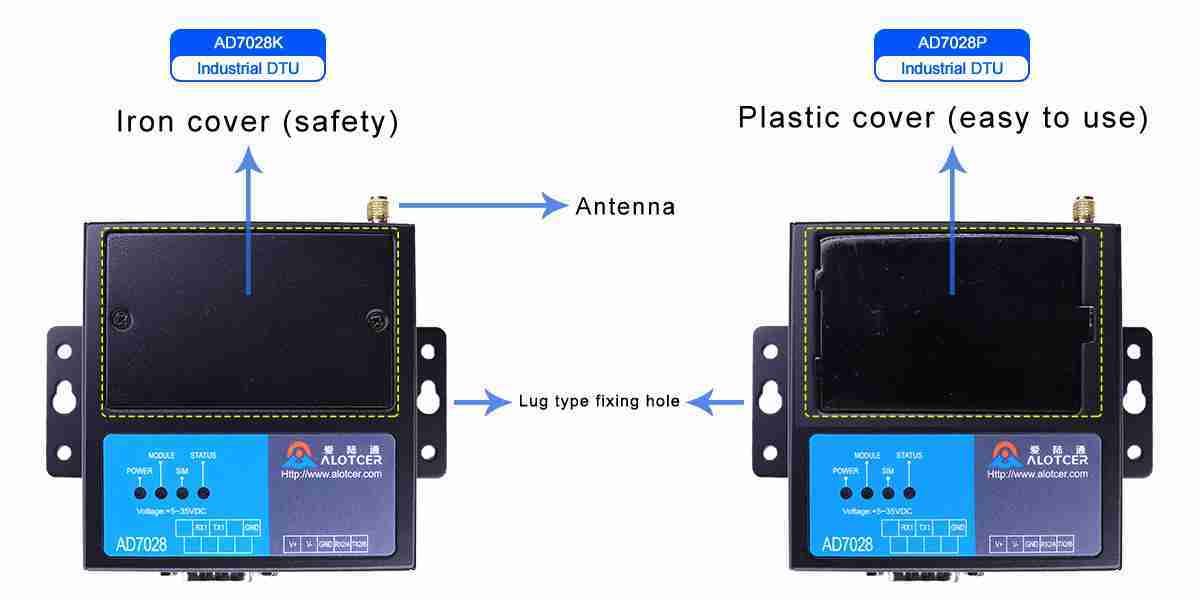

Optional lids, iron lid screw model, secure and safe. Plastic snap models, simple and easy to use.

Tính năng

• 4G/3G/2G, Cat1, NB

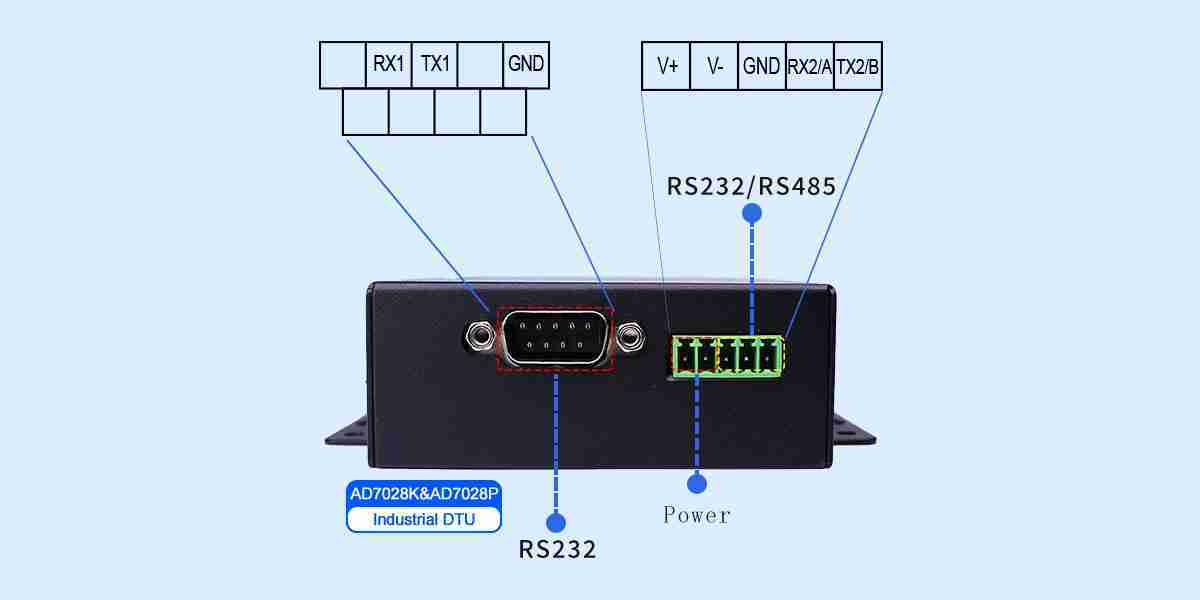

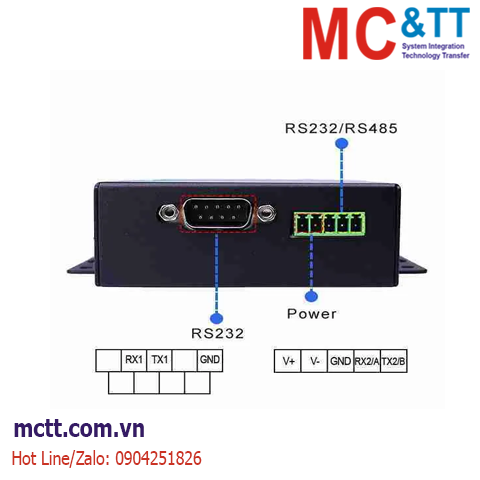

• 2 RS232/TTL ports, 1 RS485 port and 5 central connections
• TCP, UDP, Modbus, MQTT, Ntrip, etc
• Optional GPS, Beidou, Dual-SIM, eSIM Card, NB, etc
• DC 5~35V, standby current of <10mA at 12V
• 4G data communication current of <65mA in LOW mode
• Configurable High/Low power operation modes
• Temperature -35~75ºC
• Dimension: 85x110x32mm

Thông số kỹ thuật

Thông tin đặt hàng

Tài liệu

Datasheet
